Nylon Membrane Filters
Nylon membrane filters are ideal for use general filtration, medical assays, protein binding and can stand up to solvent solution.
Key Features
- Sterilizing filtration of pharmaceuticals aqueous solution and Bioassay.
- Ideal for HPLC and Organic solvents.
- Mobile phase separation & Solvent filtration.
- Filtration of microbiological media, sera and other additives.
- Filtration of wide range of inject able solution.
Technical Specifications
| Catalog No | Material Description |
|---|---|
| 170013 RI | Size: 1.3 mm, Micron Rating: 0.2 µm, Nos. / Pack: 100 |
| 170013 XI | Size: 1.3 mm, Micron Rating: 0.45 µm, Nos. / Pack: 100 |
| 170025 RI | Size: 2.5 mm, Micron Rating: 0.2 µm, Nos. / Pack: 100 |
| 170025 XI | Size: 2.5 mm, Micron Rating: 0.45 µm, Nos. / Pack: 100 |
| 170013 R | Size: 1.3 mm, Micron Rating: 0.2 µm, Nos. / Pack: 100 |
| 170013 X | Size: 1.3 mm, Micron Rating: 0.45 µm, Nos. / Pack: 100 |
| 170013 P | Size: 1.3 mm, Micron Rating: 0.1 µm, Nos. / Pack: 100 |
| 170025 R | Size: 2.5 mm, Micron Rating: 0.2 µm, Nos. / Pack: 100 |
| 170025 X | Size: 2.5 mm, Micron Rating: 0.45 µm, Nos. / Pack: 100 |
| 170025 P | Size: 4.7 mm, Micron Rating: 0.2 µm, Nos. / Pack: 100 |
| 170047 R | Size: 4.7 mm, Micron Rating: 0.2 µm, Nos. / Pack: 100 |
| 170047 X | Size: 4.7 mm, Micron Rating: 0.45 µm, Nos. / Pack: 100 |
| 170047 P | Size: 4.7 mm, Micron Rating: 0.1 µm, Nos. / Pack: 100 |
| 170047 N | Size: 4.7 mm, Micron Rating: 0.8 µm, Nos. / Pack: 100 |
| 170047 U | Size: 4.7 mm, Micron Rating: 1.2 µm, Nos. / Pack: 100 |
More Information
- Color : White
- Surface : Plain
- Extractable (NVR) : Very low (with in limit as specified in USP XXIV)
- Heat Stability : Maintain integrity for 5 cycles of autoclave at 1210C for 30 minutes
- Wettability : Hydrophilic
- Operating Temp . : 75 0C (max)
C.N Membrane Filters
CN Membrane Disc Filters are hydrophilic, non-media migrating, biologically inert plain white absolute membrane filter. CN Membrane is recommended for most routine application involving particles cells from 0.1µm to 8.0µm.
Key Features
- Ideal for microbial analysis.
- Suitable for aqueous and protein filtration.
- For analytical and research.
- Sterility testing.
Technical Specifications
| Catalog No | Material Description |
|---|---|
| 160013 R | Size: 1.3mm, Micron Rating: 0.2 µm , Nos. / Pack: 100 |
| 160013 X | Size: 1.3mm, Micron Rating: 0.45 µm , Nos. / Pack: 100 |
| 160025 P | Size: 2.5mm, Micron Rating: 0.1 µm , Nos. / Pack: 100 |
| 160025 R | Size: 2.5mm, Micron Rating: 0.2 µm , Nos. / Pack: 100 |
| 160025 X | Size: 2.5mm, Micron Rating: 0.45 µm , Nos. / Pack: 100 |
| 160025 N | Size: 2.5mm, Micron Rating: 0.8 µm , Nos. / Pack: 100 |
| 160047 P | Size: 4.7mm, Micron Rating: 0.1 µm , Nos. / Pack: 100 |
| 160047 R | Size: 4.7mm, Micron Rating: 0.2 µm , Nos. / Pack: 100 |
| 160047 X | Size: 4.7mm, Micron Rating: 0.45 µm , Nos. / Pack: 100 |
| 160047 S | Size: 4.7mm, Micron Rating: 0.65 µm , Nos. / Pack: 100 |
| 160047 N | Size: 4.7mm, Micron Rating: 0.8 µm , Nos. / Pack: 100 |
| 160047 U | Size: 4.7mm, Micron Rating: 1.2 µm , Nos. / Pack: 100 |
| 160047 V | Size: 4.7mm, Micron Rating: 2.0 µm , Nos. / Pack: 100 |
| 160047 W | Size: 4.7mm, Micron Rating: 3.0 µm , Nos. / Pack: 100 |
| 160047 Z | Size: 4.7mm, Micron Rating: 5.0 µm , Nos. / Pack: 100 |
| 160047 Y | Size: 4.7mm, Micron Rating: 8.0 µm , Nos. / Pack: 100 |
| 160090 R | Size: 9.0mm, Micron Rating: 0.2 µm , Nos. / Pack: 25 |
| 160090 X | Size: 9.0mm, Micron Rating: 0.45 µm , Nos. / Pack: 25 |
| 160090 Z | Size: 9.0mm, Micron Rating: 0.8 µm , Nos. / Pack: 25 |
More Information
- Color : White
- Surface : Plain
- Wettability : Hydrophilic
- Operating Temp . : 55 0C (max)
- Protein Binding : 150µg/cm2
- Extractable (NVR). : < 1.0%
PVDF Membrane Filters
Performs high flow rate and high throughput.
Key Features
- Protein blotting application (specially western blotting)
- Filtration of difficult filter solutions
- Prevent blow through low molecular weight protein
- HPLC
- GC sample preparation and clean up
Technical Specifications
| Catalog No | Material Description |
|---|---|
| 180013R | Size: 13mm, Micron Rating: 0.2 µm , Nos./Pkt: 100 |
| 180013X | Size: 13mm, Micron Rating: 0.45 µm , Nos./Pkt: 100 |
| 180025R | Size: 25mm, Micron Rating: 0.2 µm , Nos./Pkt: 100 |
| 180025X | Size: 25mm, Micron Rating: 0.45 µm , Nos./Pkt: 100 |
| 180047R | Size: 47mm, Micron Rating: 0.2 µm , Nos./Pkt: 100 |
| 180047X | Size: 47mm, Micron Rating: 0.45 µm , Nos./Pkt: 100 |
More Information
- Colour : White
- Surface : Plain
- Wettability : Hydrophilic
- Extractable (NVR) : Very low (with in limit as specified in USP XXIV)
- Heat Stability : Maintain integrity for 5 cycles of autoclave at 1210 C for 30 minutes

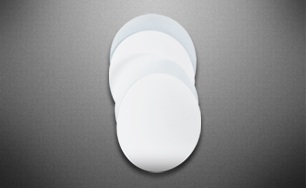

PTFE Membrane Filters
PTFE Disc Filters are chemically and biologically inert and stable up-to 260ºC and will with stand most concentrated acids and bases.
Key Features
- Absolute microbial retention
- Low Extractables
- Low chemical background permits high sensitive, interference free determinants
- Autoclavable
Technical Specifications
| Catalog No | Material Description |
|---|---|
| 240013R | Size: 13mm , Micron Rating: 0.2 µm , Nos./Pkt: 100 |
| 240013X | Size: 13mm , Micron Rating: 0.45 µm, Nos./Pkt: 100 |
| 240025R | Size: 25mm , Micron Rating: 0.2 µm , Nos./Pkt: 100 |
| 240025X | Size: 25mm , Micron Rating: 0.45 µm, Nos./Pkt: 100 |
| 240047R | Size: 47mm , Micron Rating: 0.2 µm , Nos./Pkt: 100 |
| 240047X | Size: 47mm , Micron Rating: 0.45 µm, Nos./Pkt: 100 |
| 240142R | Size: 142mm, Micron Rating: 0.2 µm , Nos./Pkt: 50 |
| 240142X | Size: 142mm, Micron Rating: 0.45 µm, Nos./Pkt: 50 |
More Information
- Color : White
- Surface : Plain
- Wettability : Hydrophobic
- Extractable (NVR) : Very low (with in limit as specified in USP XXIV)
APPLICATIONS
- For Analytical and Research applications & for Air sampling
- Used under extreme chemical or temp . Conditions
- For non- aqueous base organic solvent filtration
- Ideal for filtration of highly aggressive colloidal solutions
- Filtration of strong acids
Hydrophilic PTFE Membrane Filters
Hydrophilic PTFE Disc Filters are chemically and biologically inert and stable up-to 260ºC and will with stand most concentrated acids and bases.
Key Features
- Absolute microbial retention
- Maximal chemical and pH resistance
- High flow rates with minimal aqueous extractables
- Optically clear when wet with water
- Low chemical background permits high sensitive, interference free determinants
- Ideal for HPLC and other mixtures of aqueous and organic solvent
Technical Specifications
| Catalog No | Material Description |
|---|---|
| 250013R | Dia cm: 1.3, Rating: 0.2 , Nos./Pkt. 100 |
| 250013X | Dia cm: 1.3, Rating: 0.45 , Nos./Pkt. 100 |
| 250025R | Dia cm: 2.5, Rating: 0.2 , Nos./Pkt. 100 |
| 250025X | Dia cm: 2.5, Rating: 0.45 , Nos./Pkt. 100 |
| 250047R | Dia cm: 4.7, Rating: 0.2 , Nos./Pkt. 100 |
| 250047X | Dia cm: 4.7, Rating: 0.45 , Nos./Pkt. 100 |
More Information
- Color : White
- Surface : Plain
- Extractable (NVR) : Very low (with in limit as specified in USP XXIV)
- Wettability: Hydrophilic
Advantage
- Most inert membrane available in hydrophilic form
- Used under extreme chemical or temp. Conditions
- For aqueous base organic solvent filtration.
- Excellent chemical resistant
- Low pressure drop elongates filter service life is extended

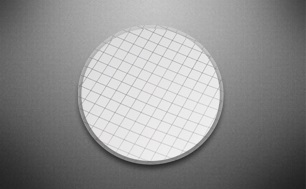

Gridded Membrane C.N Filters
GCN (Gridded CN) Membrane Filters are ideal for analytical method requiring qualitative, enrichment method microorganism counts for the detection of microbial contamination in food beverages, pharmaceuticals, cosmetics and other consumer products. Within the qualitative enrichment method, these filters are incubated on nutrient medium and then the individual colonies can then be evaluated.
Key Features
- Water Microbiology
- Grid surfaces facilitates counting of colonies
- Suitable for aqueous and protein analysis
- Particle Analysis
Technical Specifications
| Catalog No | Material Description |
|---|---|
| 160047 GXIN2 | Separator: Two , Size/Dia mm: 47, Micron Rating: 0.45 µm, Nos./Pkt: 100 |
| 160047 GXIN1 | Separator: Two , Size/Dia mm: 47, Micron Rating: 0.45 µm, Nos./Pkt: 100 |
| 160047 GXIN0 | Separator: No , Size/Dia mm: 47, Micron Rating: 0.45 µm, Nos./Pkt: 100 |
| 160047 GRI | Separator: Two , Size/Dia mm: 47, Micron Rating: 0.2 µm, Nos./Pkt: 100 |
| 160047 GNS | Separator: Two , Size/Dia mm: 47, Micron Rating: 0.8 µm, Nos./Pkt: 100 |
More Information
- Wettability : Hydrophilic
- Surface : Gridded Black
- Sterilization : ETO
M.C.E Membrane Filters
Mixed Cellulose esters is the most accepted filter media for microbiological analysis and provides maximum recovery of organisms. MCE membrane is high quality Nitro Cellulose Polymer.
Key Features
- High Porosity. That will increase Flow Rates.
- Microbiological analysis
- General Lab Filtration
- Particle analysis
- Diagnostic Kits manufacture
Technical Specifications
| Catalog No | Material Description |
|---|---|
| 150025R | Size/Dia mm: 25, Micron Rating: 0.5 µm , Nos./Pkt: 100 |
| 150025X | Size/Dia mm: 25, Micron Rating: 0.45 µm , Nos./Pkt: 100 |
| 150047R | Size/Dia mm: 47, Micron Rating: 0.5 µm , Nos./Pkt: 100 |
| 150047X | Size/Dia mm: 47, Micron Rating: 0.45 µm , Nos./Pkt: 100 |
Edge Hydrophobic C.N Filters
EHCN (edge hydrophobic cn membrane filter) is used for sterility testing of anti-biotics and drugs containing bacteria-stats. The hydrophobic edge does not allow the drug to seep under the rim of filter holder. This assures the complete removal of drug during flushing. This will improve the sterility and reliability of test.
Key Features
- Sterility testing of antibiotics and drug containing bacteriostats.
- Ideal for microbial analysis.
Technical Specifications
| Catalog No | Material Description |
|---|---|
| 160047AXED | Size/Dia mm: 47, Micron Rating: 0.45 µm, Nos./Pkt: 100 |
